6.2L Short Wheelbase Cat-Back Dual Exit Exhaust Upgrade System (for ZR2 and AT4X trims)

6.2L Short Wheelbase Cat-Back Dual Exit Exhaust Upgrade System (for ZR2 and AT4X trims)

GM Part #87816783

MSRP$2,395.00*

Give your Sierra increased horsepower and a more assertive sound with the GMC Performance 6.

  • Upgrades the look and sound of your vehicle’s exhaust system
  • Helps to reduce restrictions in the exhaust system
  • Allows the engine to breathe better

About this product

Give your Sierra increased horsepower and a more assertive sound with the GMC Performance 6.2L Short Wheelbase Cat-Back Dual Exit Exhaust Upgrade System. This exhaust system offers an increase of up to 13 horsepower and 7 lb.-ft. of torque, while reducing backpressure by 40% at 335-g/s, based on correlated flow testing. Designed and validated by GMC Performance engineers, this 304 Stainless Steel Cat-Back System is tuned to maximize the performance experience while minimizing drone. This performance exhaust upgrade system includes muffler, front pipe and rear pipes, along with necessary clamps for installation. Will not void the New Vehicle Limited Warranty.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Upgrades the look and sound of your vehicle’s exhaust system
  • Helps to reduce restrictions in the exhaust system
  • Allows the engine to breathe better

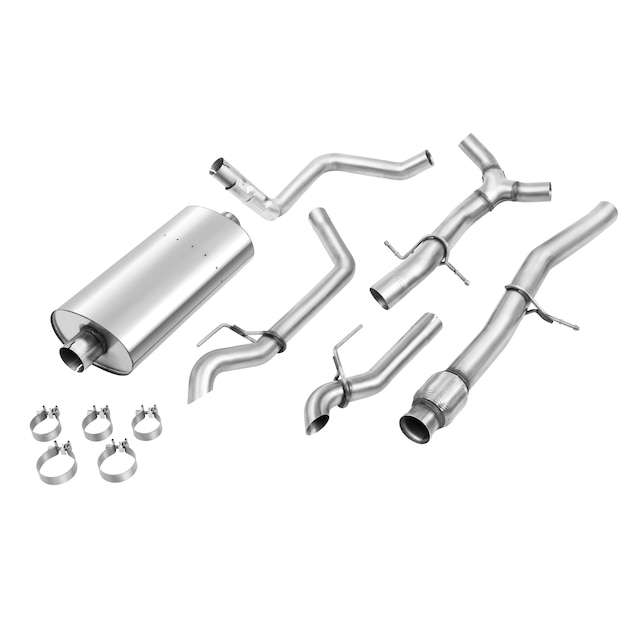

  • System includes muffler, front pipe and rear pipes, along with necessary clamps for installation
  • Exhaust pipes turn down before the bumper to maintain the vehicle's off-road departure angle
  • 40% backpressure reduction at 335-g/s, based on correlated flow testing
  • Helps increase by up to 13 horesepower and 7 lb.-ft. of torque
  • Will not void the New Vehicle Warranty
  • Compatible with ZR2 and AT4X trims

Mounting Bracket IncludedYes
Tail Pipe Outlet Outside Diameter2.75 in / 70 mm
Clamps IncludedYes
Muffler Outlet Quantity1
Muffler Body ShapeOval
Muffler Quantity1
Muffler Body Length24 in / 610 mm
Tail Pipe Tapered OutletNo
Muffler Flanged OutletNo
Muffler Flanged InletNo
Spring Bolt Kit IncludedNo
Hangers IncludedYes
Body MaterialSteel
FinishChrome
Heat Shield AttachedNo
Gasket Or Seal IncludedNo
Tail Pipe Quantity2
Outlet Quantity2
Inlet Quantity1
Grade TypeStandard
Inlet Inside Diameter3.78 in / 96 mm
Inlet Outside Diameter3.9 in / 99 mm
Outlet Inside Diameter2.64 in / 67 mm
Outlet Outside Diameter3.9 in / 70 mm
Outlet TypeDual
Body Height7.83 in / 199 mm
Inlet TypeFlared
Body Width12.09 in / 307 mm
Exhaust Tip Quantity2
Pipe MaterialSteel
Exhaust Tip Diameter2.75 in / 70 mm
Muffler Inlet Inside Diameter3.5 in / 89 mm
Body Length24.02 in / 610 mm
Overall Length141.02 in / 3582 mm
Assembled Length140.94 in / 11.7 ft
Exhaust Tip MaterialSteel
Muffler Inlet Outside Diameter3.5 in / 89 mm
Inlet LocationCenter
Muffler MaterialSteel
Exhaust Tip FinishChrome
Outlet LocationCenter
Valve IncludedNo
Clamping TypeFlat Band
Tip Shape"Round, "
Muffler ShapeOblong

The greater of either the balance of the vehicle's bumper to bumper warranty or 12 months / 12,000 miles

ModelBody StyleTrimYear(s)
Sierra 1500Crew Cab PickupAT4X2022, 2023

Frequently Asked Questions

Upgrading your exhaust system will help enhance the sound, performance and style of your vehicle. It can also help to reduce restriction in the exhaust system.

No, this exhaust will not void the New Vehicle Limited Warranty.
