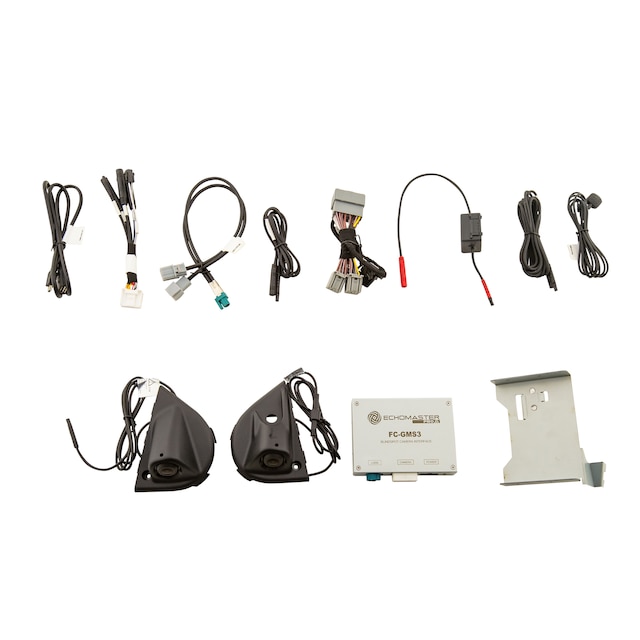

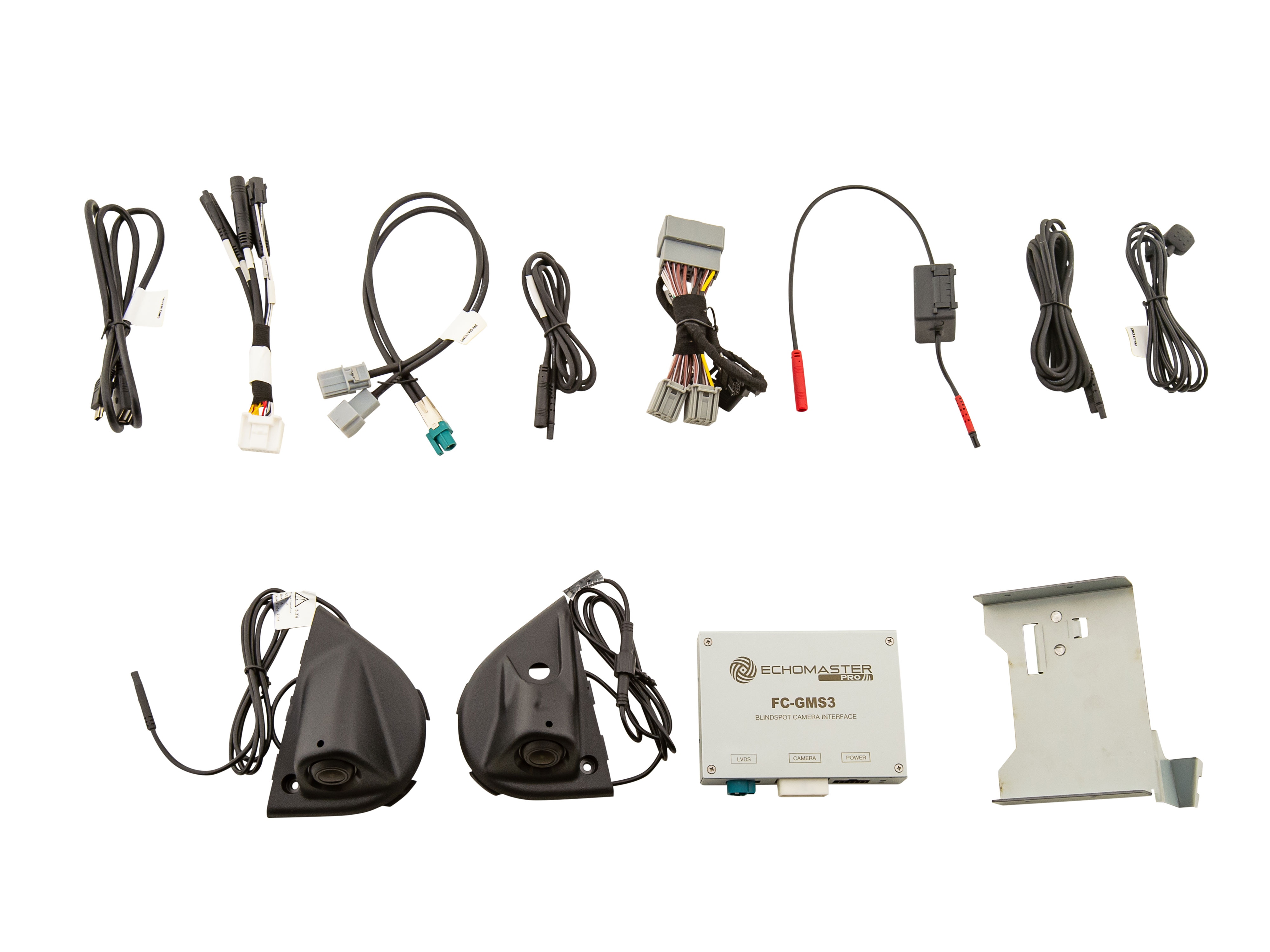

IntelliHaul 2.0 Trailering Camera System by EchoMaster® - Associated Accessories
GM Part #19421451
About this product
Expand your field of vision with the GMC Accessories Intellihaul 2.0 Trailering Camera System from EchoMaster®, engineered to add visibility into blind spots while towing. This blind spot monitoring kit is a three-camera system with a graphical user interface (GUI) integrated into the vehicle touch-screen. The system automatically activates cameras based on driving behavior, such as using left and right turn signals. To view the wireless trailer camera, activate the GUI and select wireless trailer camera. The two side-view blind-spot cameras integrate into your vehicle’s side-view mirrors with side mirror pod camera mounts. An included wireless rear trailer camera mounts on the top rearmost trailer edge for a behind-trailer view when backing up, or on demand anytime. This customizable camera system features the ability to add one of two available cameras: an additional Optional Wireless Trailer Camera that can be placed to monitor cargo or livestock inside the trailer, or a Front Camera, designed to mount to the front grille or bumper, can be automatically activated at a low driving speed (or manually activated for convenience). Requires IOS or IOT radio. Not compatible with IOR or IOK radio.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Adds enhanced visibility to help overcome blind spots while towing a trailer
- Delivers crisp, clear, high-definition 720p camera views
- Provides flexibility to interchange multiple trailers, each equipped with added optional wireless cameras (sold separately), for fleet vehicle needs, such as landscaping or commercial hauling
- Integrated graphical interface is designed specifically for your vehicle’s touch-screen
- Cameras display on factory touch-screen (multi-cam view available)
- Side-view blind-spot cameras integrate into your vehicle’s side-view mirrors with side mirror pod camera mounts
- Side-view cameras activate manually or automatically with turn signals
- Engineered module allows for seamless plug-and-play installation
- Front Camera can be activated automatically when driving under a specific speed (feature can be turned off or on by user)
- Front Camera has Sony IMX 225 sensor
- Requires IOS or IOT radio. Not compatible with IOR or IOK radio.
- Instructions and user manual available via included QR Code
Non-GM Warranty. Limited Warranty by ECHOMASTER®, 3 years / 36,000 miles (whichever occurs first). For more information contact your dealer.
Frequently Asked Questions
Yes, if you have Enable Blind Spot Cameras selected in the Settings Screen for the Intellihaul 2.0 GUI.
When the Speedup Trigger is enabled, the Front Camera will display upon exiting Reverse, and turn off when the vehicle reaches 8 mph. When the Slow Down Trigger is enabled, the Front Camera will display when the vehicle goes below 10 mph (with the steering wheel turned more than 15 degrees). This is after the vehicle has reached 15 mph to activate. Be sure that you have your desired triggers selected in the Setup Menu.
System can support four cameras, and includes two side blind spot cameras and a Wireless Trailer Camera; one additional camera can be added to the system to customize it for your use, either a Front Camera or an Optional Wireless Trailer Camera (sold separately).
No, the Optional Wireless Trailer Camera and Front Camera will only operate in conjunction with the Intellihaul 2.0 Trailering Camera System.
